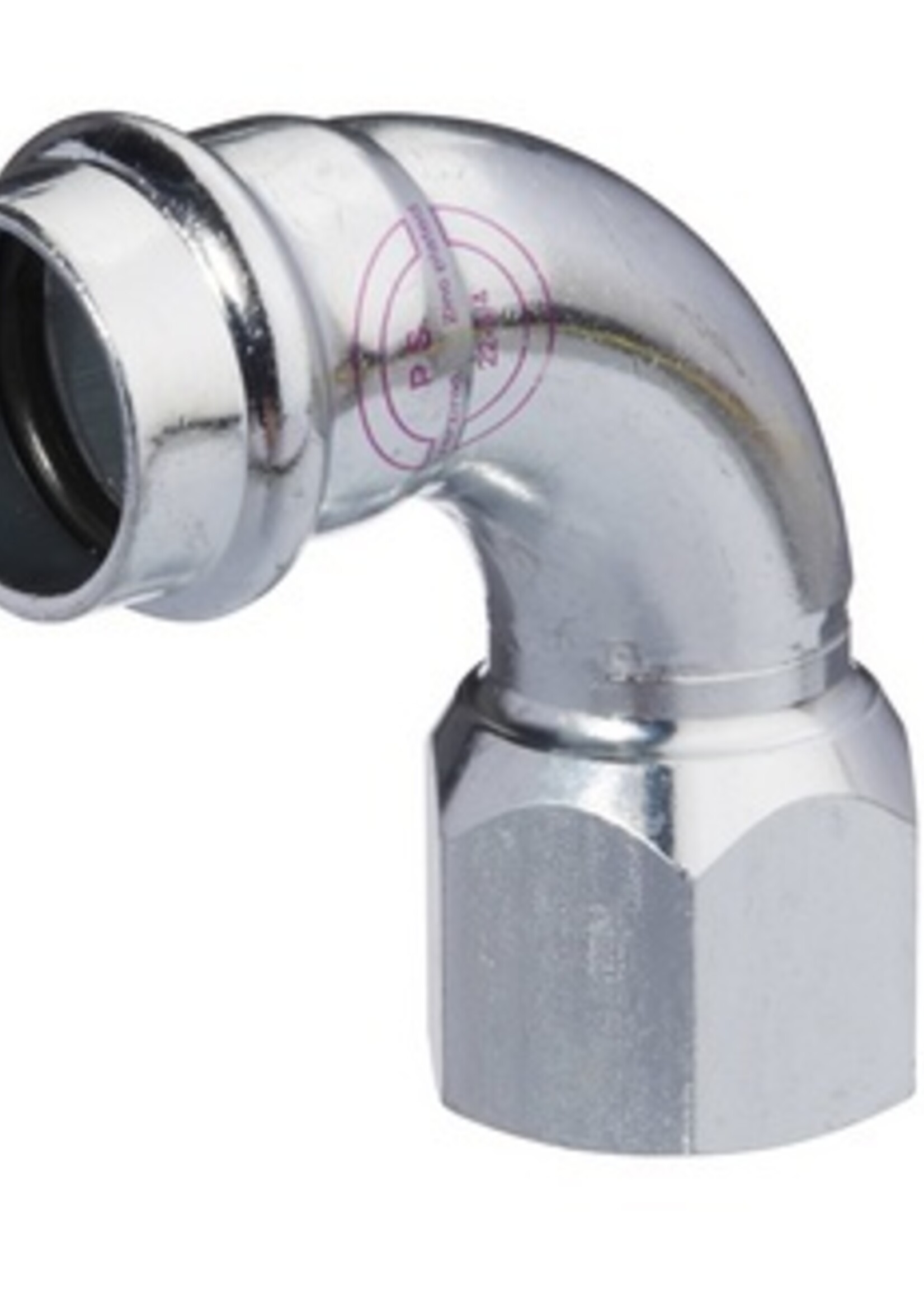

V-PRESS ST. ZINC PLATED BEND 90° I.DR. 28x1"

galvanized steel
can be pressed with V jaws
available in diameters 15-18-22-28-35-42 and 54
from diameter 42 mm pressing with press chains
O-ring in EPDM with press control (if the fitting is not pressed, it leaks)
temperature range o-ring from -10°C to 110°C
10 year warranty
acier électrozinqué
à sertir with the machoir V
available in diameters 15-18-22-28 and 35 mm
O-ring and EPDM with control of the sertissage (so the cord is not pressed, it is full)
min/max temperature of the o-ring from -10°C to 110°C
Warranty for 10 years
Press fitting V-Profil with galvanized C-Stahl
Durchmesser 15 - 18 - 22 - 28 - 35
can be pressed with V jaws
available in diameters 15-18-22-28-35-42 and 54
from diameter 42 mm can be pressed with press chains
O-ring in EPDM with press check (if the fitting is not pressed, it will leak)
O-ring temperature range from -10°C to 110°C
10 year warranty
